उत्पाद विवरण:
|
| सामग्री की संरचना: | टंगस्टन कार्बाइड और कोबाल्ट | मिश्र धातु विशिष्टता: | YG8, YG6, YG6X, YG9C, YG11C, YG13C |
|---|---|---|---|
| आकार: | बेलनाकार | सतह खत्म: | चमकदार |
| रंग: | काला मिश्र धातु | घनत्व सीमा: | 12.33-15.0 g/cm g |
| कठोरता सीमा: | 86.5-93.6 एचआरए | टीआरएस श्रेणी: | 1800-3800 एमपीए |
| पोरसिटी ग्रेड: | A02/B00/C00 | अनाज आकार: | 0.4-2.4 माइक्रोन |
| डब्ल्यूसी सामग्री: | 69.2-94.0% | नी सामग्री: | 6.0-16.0% |
| ती सामग्री: | 0-7.4% | टीएसी सामग्री: | 0-13.8% |
| अनुकूलन: | प्रति ग्राहक ड्राइंग या नमूना उपलब्ध है | ||
| प्रमुखता देना: | YG8 YG6 YG6X YG9C YG11C YG13C Alloy Tungsten Carbide Seal Ring,High Temperature Resistance Tungsten Carbide Seal Ring,High Pressure Resistance Cemented Tungsten Carbide Sealing Ring |
||

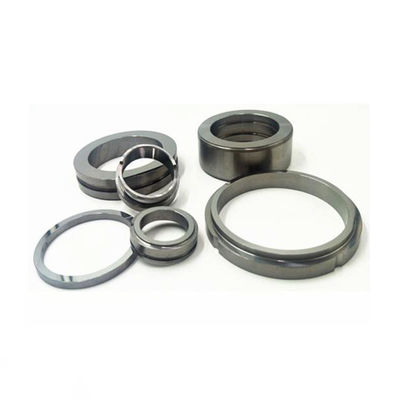

High temperature and high pressure resistant sealing ring designed for metallurgical equipment shafts.
| Grade | Composition(% in weight) | Physical Properties | Grain size(μm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| WC | Ni | Ti | TaC | A/B/C | Densityg/cm³(±0.1) | HardnessHRA(±0.5) | TRS Mpa(min) | Porosity | |
| KD115/YG6X | 93.5 | 6.0 | - | 0.5 | 14.90 | 93.0 | 2700 | A02/B00/C00 | 0.6-0.8 |
| KD335/YG10X | 89.0 | 10.5 | - | 0.5 | 14.40 | 91.8 | 3800 | A02/B00/C00 | 0.6-0.8 |
| KG6/YG6 | 94.0 | 6.0 | - | - | 14.90 | 90.5 | 2500 | A02/B00/C00 | 1.2-1.6 |
| KG8/YG8 | 92.0 | 8.0 | - | - | 14.75 | 90.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG9/YG9 | 91.0 | 9.0 | - | - | 14.60 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG9C/YG9C | 91.0 | 9.0 | - | - | 14.60 | 88.0 | 3200 | A02/B00/C00 | 1.6-2.4 |
| KG10/KG10 | 90.0 | 10.0 | - | - | 14.50 | 88.5 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG11/YG11 | 89.0 | 11.0 | - | - | 14.35 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG11C/YG11C | 89.0 | 11.0 | - | - | 14.40 | 87.5 | 3000 | A02/B00/C00 | 1.6-2.4 |
| KG13/YG13 | 87.0 | 13.0 | - | - | 14.20 | 88.7 | 3500 | A02/B00/C00 | 1.2-1.6 |
| KG13C/YG13C | 87.0 | 13.0 | - | - | 14.20 | 87.0 | 3500 | A02/B00/C00 | 1.6-2.4 |
| KG15/YG15 | 85.0 | 15.0 | - | - | 14.10 | 87.5 | 3500 | A02/B00/C00 | 1.2-1.6 |
| KG15C/YG15C | 85.0 | 15.0 | - | - | 14.00 | 86.5 | 3500 | A02/B00/C00 | 1.6-2.4 |
| KD118/YG8X | 91.5 | 8.5 | - | - | 14.50 | 93.6 | 3800 | A02/B00/C00 | 0.4-0.6 |
| KD338/YG12X | 88.0 | 12.0 | - | - | 14.10 | 92.8 | 2200 | A02/B00/C00 | 0.4-0.6 |
| KD25/P25 | 77.4 | 8.5 | 6.5 | 6.0 | 12.60 | 91.8 | 2200 | A02/B00/C00 | 1.0-1.6 |
| KD35/P35 | 69.2 | 10.5 | 5.2 | 13.8 | 12.70 | 91.1 | 2500 | A02/B00/C00 | 1.0-1.6 |
| KD10/M10 | 83.4 | 7.0 | 4.5 | 4.0 | 13.25 | 93.0 | 2000 | A02/B00/C00 | 0.8-1.2 |
| KD20/M20 | 79.0 | 8.0 | 7.4 | 3.8 | 12.33 | 92.1 | 2200 | A02/B00/C00 | 0.8-1.2 |
| Grade | Composition (% in weight) | Physical Properties | Equivalent domestic | ||||||
|---|---|---|---|---|---|---|---|---|---|
| WC | Ni | Ti | Density g/cm³ (±0.1) | Hardness HRA (±0.5) | TRS Mpa (min) | Porosity ABC | Grain size (μm) | ||
| KDN6 | 93.8 | 6.0 | 0.2 | 14.6-15.0 | 89.5-90.5 | 1800 | A02B00C00 | 0.8-2.0 | YN6 |
