उत्पाद विवरण:
|
| सामग्री: | 100% शुद्ध वोल्फ्रेम कार्बाइड पाउडर | आकार: | बेलनाकार |
|---|---|---|---|
| सतह: | चमकदार | रंग: | काला |
| श्रेणी: | Yg8/yg9c/yg11c | घनत्व: | 14.90 g/cm³ (yg6x) |
| कठोरता: | 93.0 एचआरए (YG6X) | टीआरएस: | 2700 एमपीए (YG6X) |
| सरंध्रता: | A02/B00/C00 | अनाज आकार: | 0.6-0.8 माइक्रोन (yg6x) |
| डब्ल्यूसी रचना: | 93.5% (yg6x) | नी रचना: | 6.0% (yg6x) |
| टीएसी रचना: | 0.5% (yg6x) | न्यूनतम ऑर्डर: | 5 टुकड़े |
| शक्ति का स्रोत: | बिजली | ||
| प्रमुखता देना: | 100% Pure Tungsten Carbide Powder Buttons,Custom Size Tungsten Carbide Buttons,Cylindrical Tungsten Carbide Buttons |
||

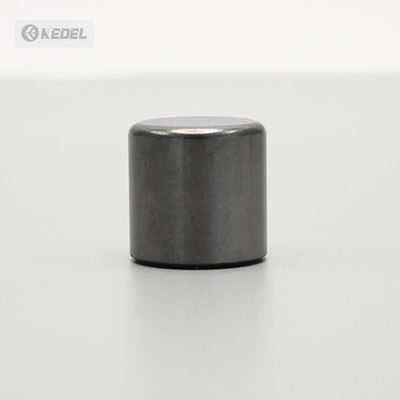

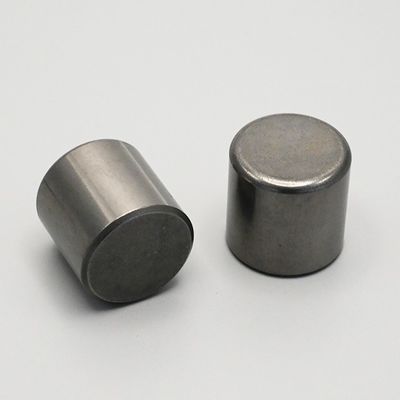

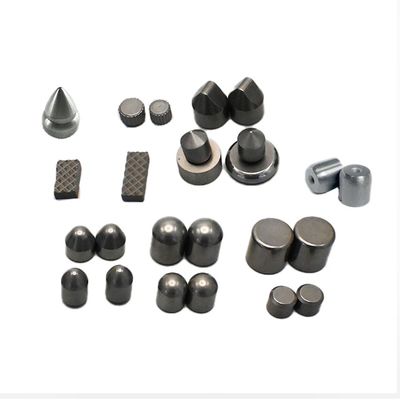

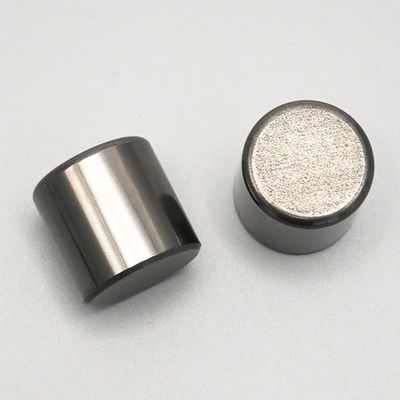

Premium YG8, YG9, YG11, and YG13 grade tungsten carbide buttons designed specifically for the oil and gas industry applications.
| Grade | Composition(% in weight) | Physical Properties | Grain size(μm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| WC | Ni | Ti | TaC | A/B/C | Densityg/cm³(±0.1) | HardnessHRA(±0.5) | TRS Mpa(min) | Porosity | |
| KD115/YG6X | 93.5 | 6.0 | - | 0.5 | 14.90 | 93.0 | 2700 | A02/B00/C00 | 0.6-0.8 |
| KD335/YG10X | 89.0 | 10.5 | - | 0.5 | 14.40 | 91.8 | 3800 | A02/B00/C00 | 0.6-0.8 |
| KG6/YG6 | 94.0 | 6.0 | - | - | 14.90 | 90.5 | 2500 | A02/B00/C00 | 1.2-1.6 |
| KG8/YG8 | 92.0 | 8.0 | - | - | 14.75 | 90.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG9/YG9 | 91.0 | 9.0 | - | - | 14.60 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG9C/YG9C | 91.0 | 9.0 | - | - | 14.60 | 88.0 | 3200 | A02/B00/C00 | 1.6-2.4 |
| KG10/KG10 | 90.0 | 10.0 | - | - | 14.50 | 88.5 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG11/YG11 | 89.0 | 11.0 | - | - | 14.35 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 |
| KG11C/YG11C | 89.0 | 11.0 | - | - | 14.40 | 87.5 | 3000 | A02/B00/C00 | 1.6-2.4 |
| KG13/YG13 | 87.0 | 13.0 | - | - | 14.20 | 88.7 | 3500 | A02/B00/C00 | 1.2-1.6 |
| KG13C/YG13C | 87.0 | 13.0 | - | - | 14.20 | 87.0 | 3500 | A02/B00/C00 | 1.6-2.4 |
| KG15/YG15 | 85.0 | 15.0 | - | - | 14.10 | 87.5 | 3500 | A02/B00/C00 | 1.2-1.6 |
| KG15C/YG15C | 85.0 | 15.0 | - | - | 14.00 | 86.5 | 3500 | A02/B00/C00 | 1.6-2.4 |
| KD118/YG8X | 91.5 | 8.5 | - | - | 14.50 | 93.6 | 3800 | A02/B00/C00 | 0.4-0.6 |
| KD338/YG12X | 88.0 | 12.0 | - | - | 14.10 | 92.8 | 2200 | A02/B00/C00 | 0.4-0.6 |
| KD25/P25 | 77.4 | 8.5 | 6.5 | 6.0 | 12.60 | 91.8 | 2200 | A02/B00/C00 | 1.0-1.6 |
| KD35/P35 | 69.2 | 10.5 | 5.2 | 13.8 | 12.70 | 91.1 | 2500 | A02/B00/C00 | 1.0-1.6 |
| KD10/M10 | 83.4 | 7.0 | 4.5 | 4.0 | 13.25 | 93.0 | 2000 | A02/B00/C00 | 0.8-1.2 |
| KD20/M20 | 79.0 | 8.0 | 7.4 | 3.8 | 12.33 | 92.1 | 2200 | A02/B00/C00 | 0.8-1.2 |

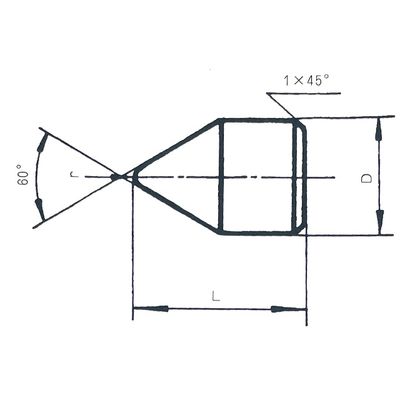

NOTE: Customization available per customer drawing or actual sample
At Kedel Technology Co., Ltd. in Chengdu, we value every customer interaction. Your satisfaction drives our continuous improvement, and we appreciate your trust in our premium tungsten carbide products.
