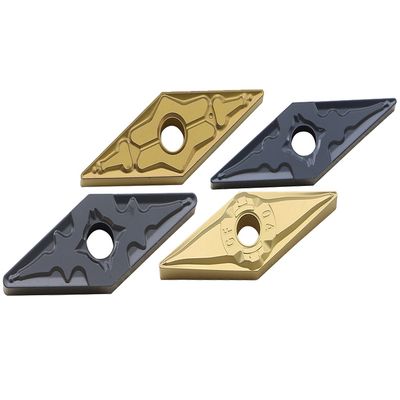

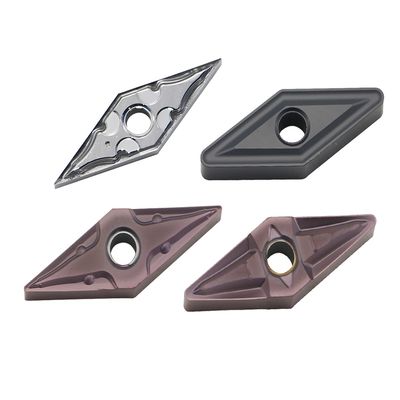

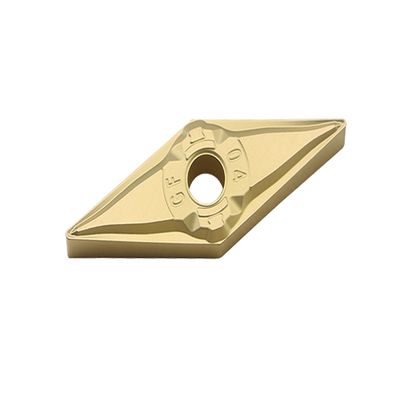

उत्पाद विवरण:
|
| कोटिंग प्रकार: | पीवीडी | कठोरता: | HRA90 |
|---|---|---|---|
| सामग्री: | टंगस्टन कार्बाइड | नमूना: | वीएनएमजी |
| सहनशीलता: | ±0.08-±0.18 | कोण टी: | 35 ° |
| कोण एन: | 0 डिग्री | व्यास: | 4.76 mm |
| मोटाई: | 3.81 मिमी | कोने का अर्द्ध व्यास: | 0.4 मिमी, 0.8 मिमी |
| चिप ब्रेकर: | दो तरफा नाली | कोटिंग रंग: | पीवीडी और सीवीडी |
| वर्कपीस सामग्री: | स्टेनलेस स्टील और स्टील | एचआरसी रेंज: | 45HRC, 55HRC, 60HRC, 65HRC |
| न्यूनतम ऑर्डर: | 10 टुकड़े | ||
| प्रमुखता देना: | HRA90 Hardness CNC Insert,45HRC-65HRC Turning Insert,3 Years Warranty Carbide Insert |
||

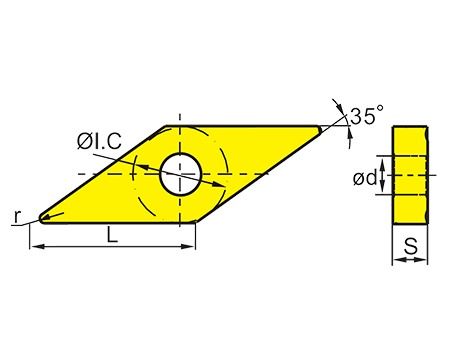

| Parameter | Value |
|---|---|
| T | 35° |
| N | 0° |
| M | ±0.08-±0.18 |
| G | Holes |
| Type | S | ϕd (mm) | r (mm) |
|---|---|---|---|
| VNMG160404-OPF | 4.76 | 3.81 | 0.4 |
| VNMG160408-OPF | 4.76 | 3.81 | 0.8 |
| VNMG160404-OPM | 4.76 | 3.81 | 0.4 |
| VNMG160408-OPM | 4.76 | 3.81 | 0.8 |
| VNMG160404-OMM | 4.76 | 3.81 | 0.4 |
| VNMG160408-OMM | 4.76 | 3.81 | 0.8 |
| VNMG160404 | 4.76 | 3.81 | 0.4 |
| VNMG160408 | 4.76 | 3.81 | 0.8 |
| VNMA160404 | 4.76 | 3.81 | 0.4 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
